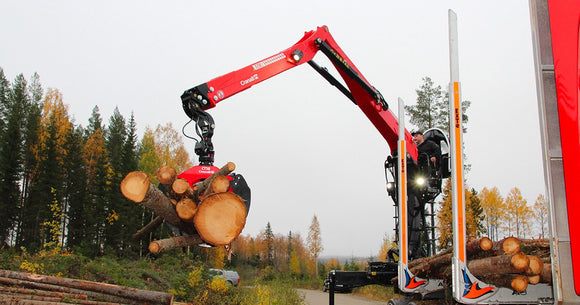

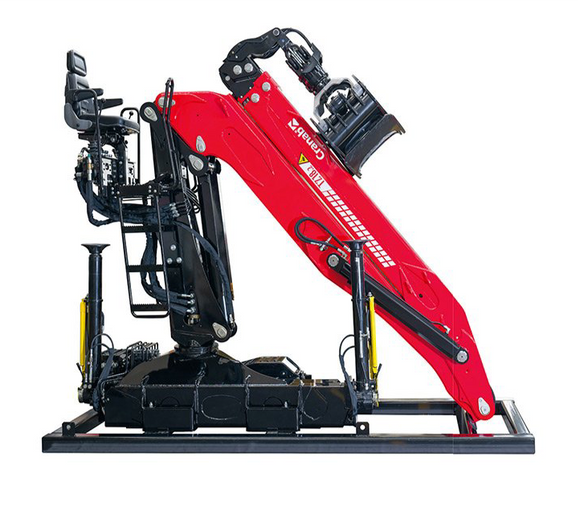

Cranab TZ18 Production Loader

For timber haulage and recycling

Cranab truck cranes have been developed for both transport and material handling. The cranes can easily handle everything from timber and scrap to large containers.

The cranes have been specially produced for trucks and consist of modern, tried-and-tested technologies and world-class hydraulics. In our development work we have focused on the operator, contractors and the environment. We have put great emphasis into the industry-leading key properties of performance, high productivity and sustainability. With Cranab's Z-crane you will achieve high productivity from the outset. The crane extends quickly and enables efficient production using extensively tested hydraulics and leading operating properties. Thanks to its compact design and the Z-crane's unique parking position the operator is able to take a maximum load every time.

Available versions:

Telescopic version - 2

Standard reach - 10,2 m

Lifting capacity - 170,00 kNm

Hydraulic extension - 3,7 m

Angle rotation - 425°

Rotation torque - 29,3 kNm

Working pressure - 26 Mpa

Pump capacity - 120 - 160 l/min

Crane weight - 3050 kg
