For timber haulage and recycling

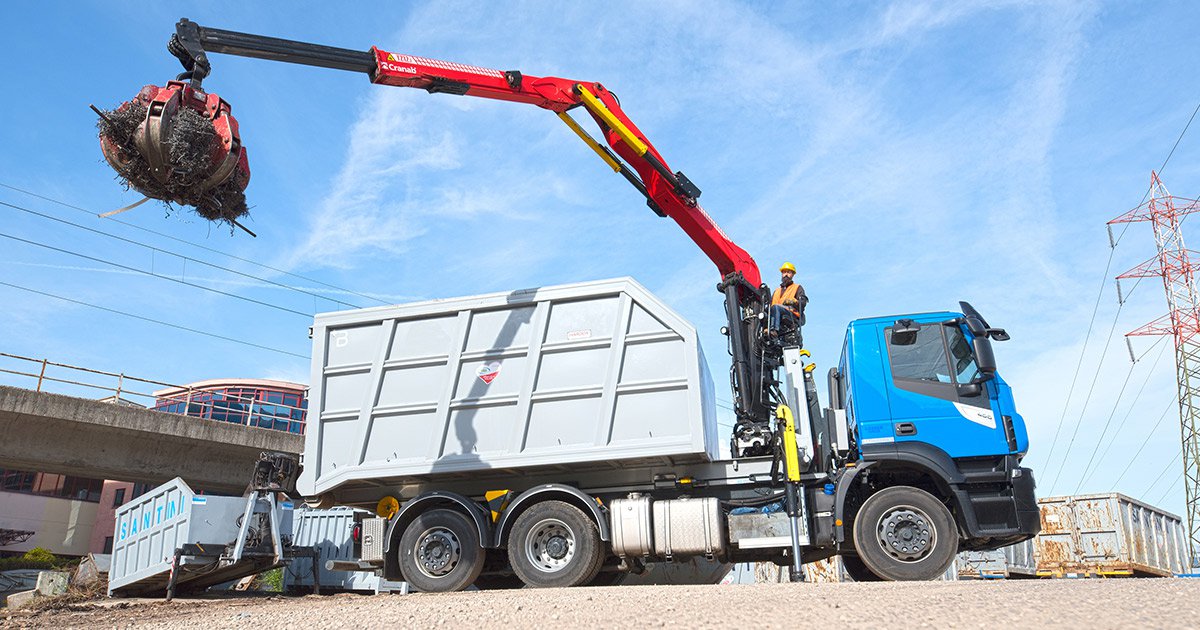

Cranab truck cranes have been developed for both transport and material handling. The cranes can easily handle everything from timber and scrap to large containers.
The cranes have been specially produced for trucks and consist of modern, tried-and-tested technologies and world-class hydraulics. In our development work we have focused on the operator, contractors and the environment. We have put great emphasis into the industry-leading key properties of performance, high productivity and sustainability.
With Cranab's Z-crane you will achieve high productivity from the outset. The crane extends quickly and enables efficient production using extensively tested hydraulics and leading operating properties. Thanks to its compact design and the Z-crane's unique parking position the operator is able to take a maximum load every time.
Available versions:
Telescopic version - 1
Standard reach - 8,3 m
Lifting capacity - 108,0 kNm
Hydraulic extension - 1,97 m
Angle rotation - 425°
Rotation torque - 29,3 kNm
Working pressure - 26 Mpa
Pump capacity - 120 - 160 l/min
Crane weight - 2425 kg
Telescopic version - 2
Standard reach - 9,3 m
Lifting capacity - 102,8 kNm
Hydraulic extension - 3,1 m
Angle rotation - 425°
Rotation torque - 29,3 kNm
Working pressure - 26 Mpa
Pump capacity - 120 - 160 l/min
Crane weight - 2475 kg
Telescopic version - 2
Standard reach - 10,5 m
Lifting capacity - 99,7 kNm
Hydraulic extension - 3,9 m
Angle rotation - 425°
Rotation torque - 29,3 kNm
Working pressure - 26 Mpa
Pump capacity - 120 - 160 l/min
Crane weight - 2515 kg
Telescopic version - 2
Standard reach - 7,7 m
Lifting capacity - 111,0 kNm
Hydraulic extension - 2,53 m
Angle rotation - 425°
Rotation torque - 29,3 kNm
Working pressure - 26 Mpa
Pump capacity - 120 - 160 l/min
Crane weight - 2200 kg
