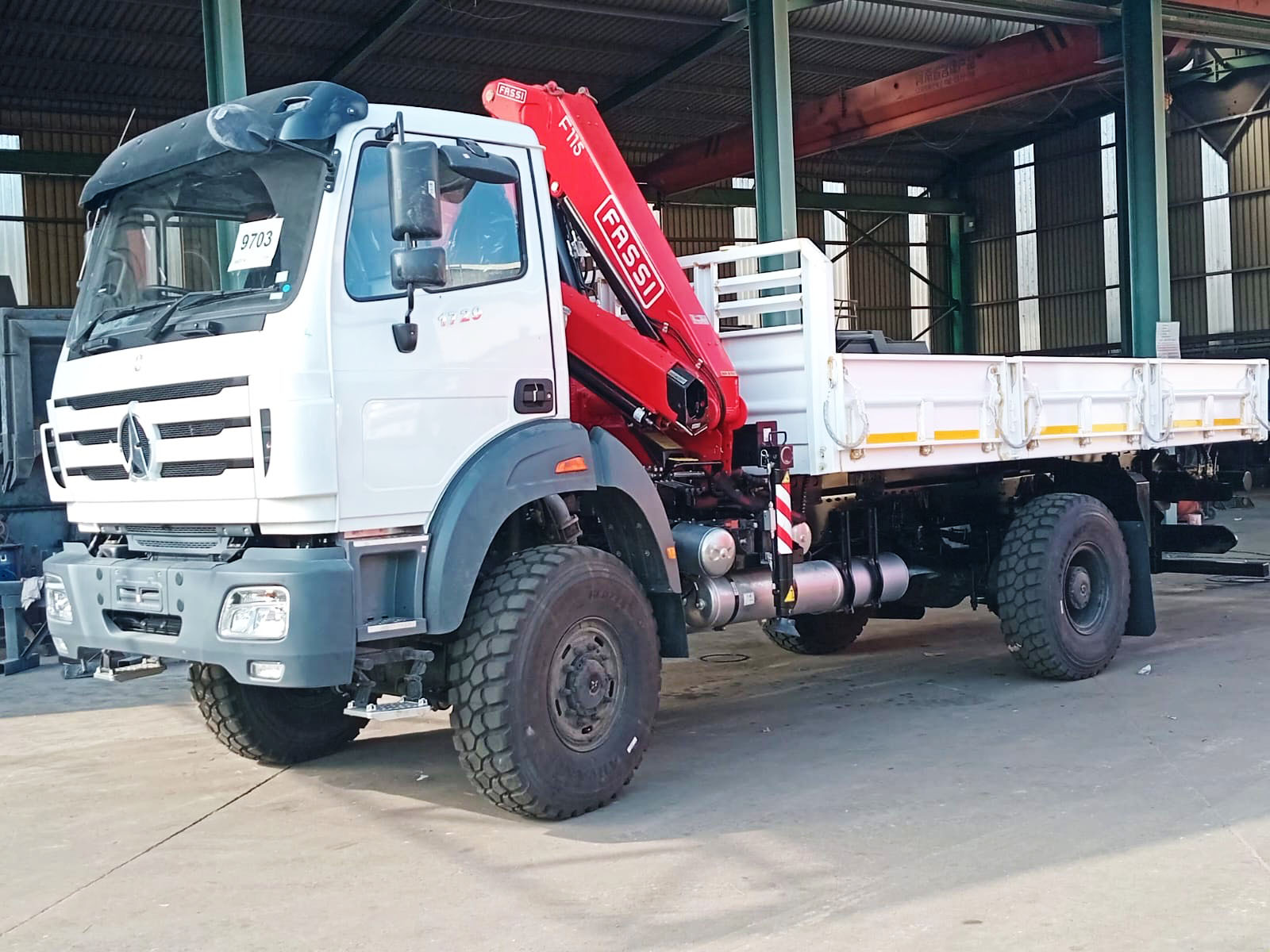

The F115A.0 is a compact and reliable crane, ideal for those looking for a compact machine that provides solid performance. With a maximummoment of 11.6 tm and a hydraulic outreach of up to 16.50 m with jib, it offers versatility for use in a range of operating environments.
The active version (.0), without linkage, is equipped with Hydrocontrol HC/D4 modular hydraulic distributor, which ensures smooth and precise movement. 390° rotation with rack and pinion, featuring self-centring cast-iron guides, ensures smooth and durable motion, minimising wear and tear.

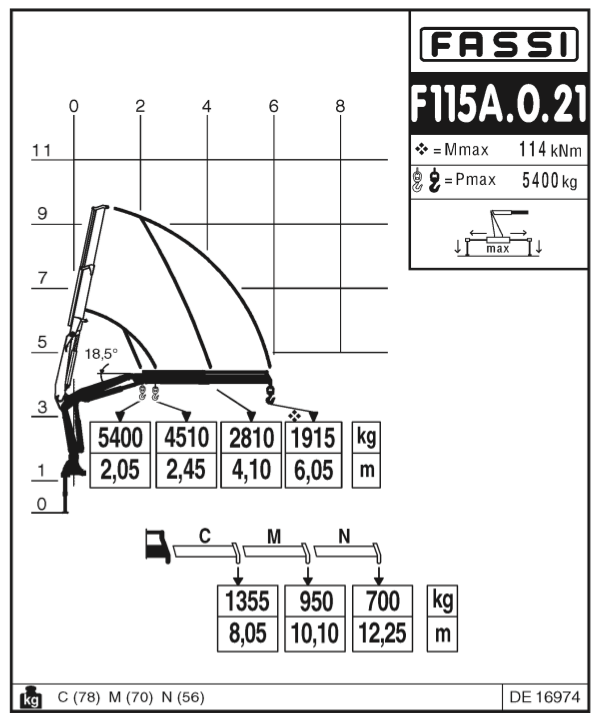

LIFTING CAPACITY:
11,4 tm / 114 kNm
MAX OUTREACH:
up to 6,25 m (horizontal)
up to 9,65 m (vertical)
OVERALL DIMENSIONS:
from: W. 2,30 m, L. 0,80 m, H. 2,20 m
HYDRAULIC EQUIPMENT:
Dual ground controls
Four (4) function distributor bank
Radio remote control unit** (optional)**
CHARACTERISTICS:
active version (.0): without linkage
rotation 390° with rack and pinion
