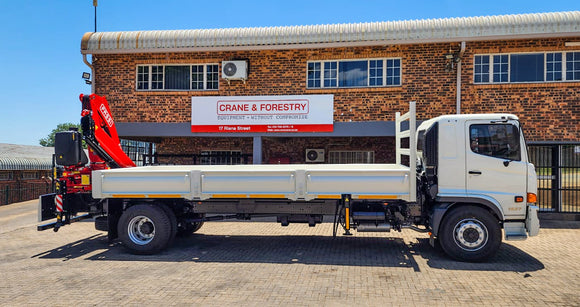

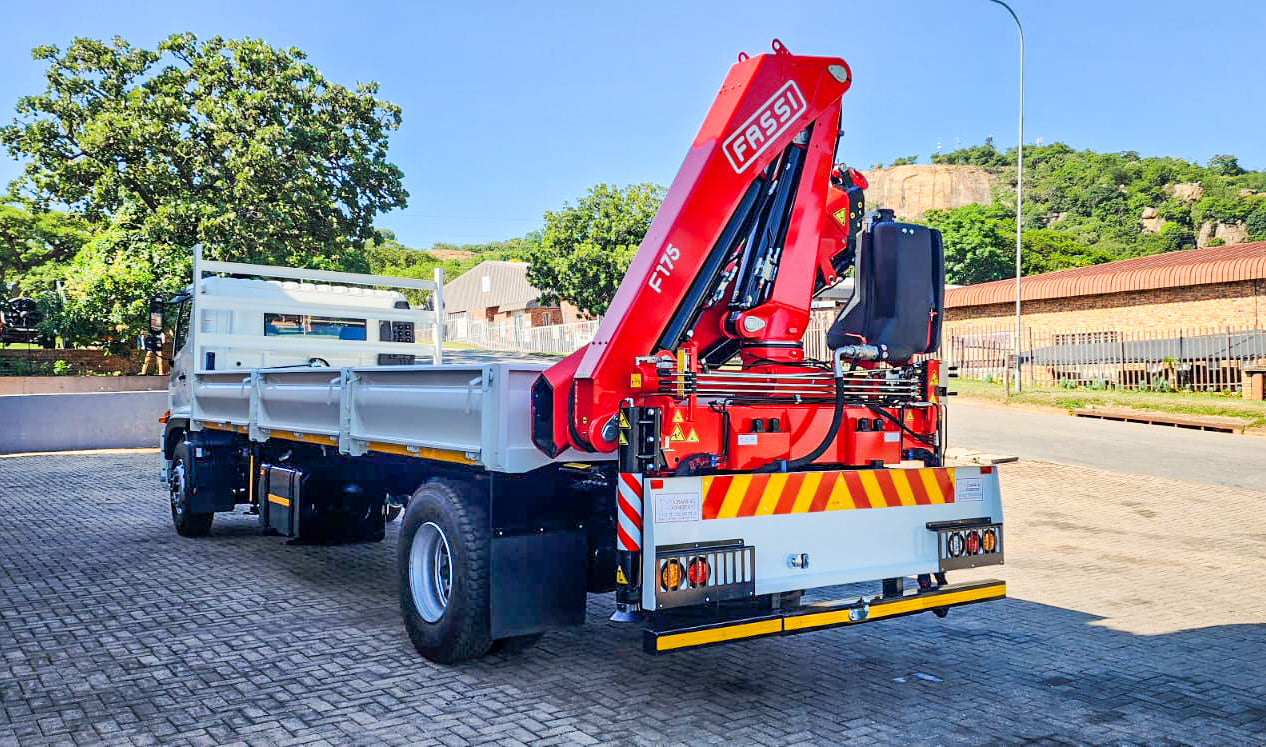

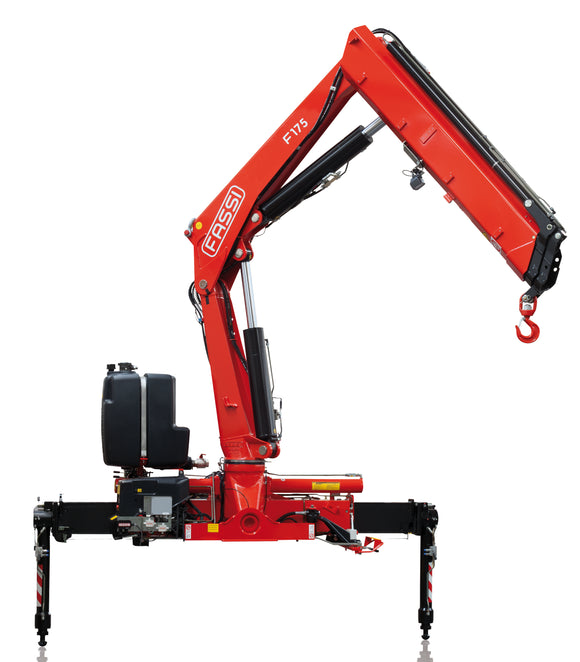

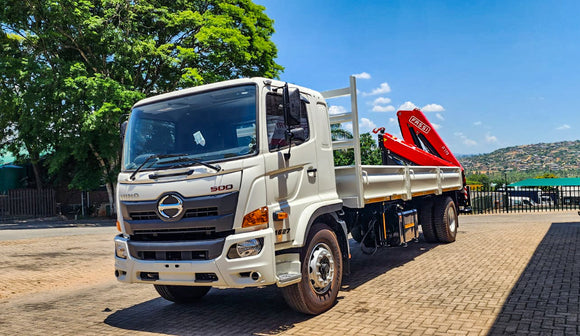

The F175A.0 is a compact and reliable crane with a lifting capacity of up to 17.0 tm and a maximum outreach of 18.70 m with jib.
The S800 hydraulic distributor offers simple and safe control, while the active version (.0) without linkage prioritises immediate response and ease of use. 400° rotation with rack and pinion guarantees smooth maneuverability in all operating conditions.

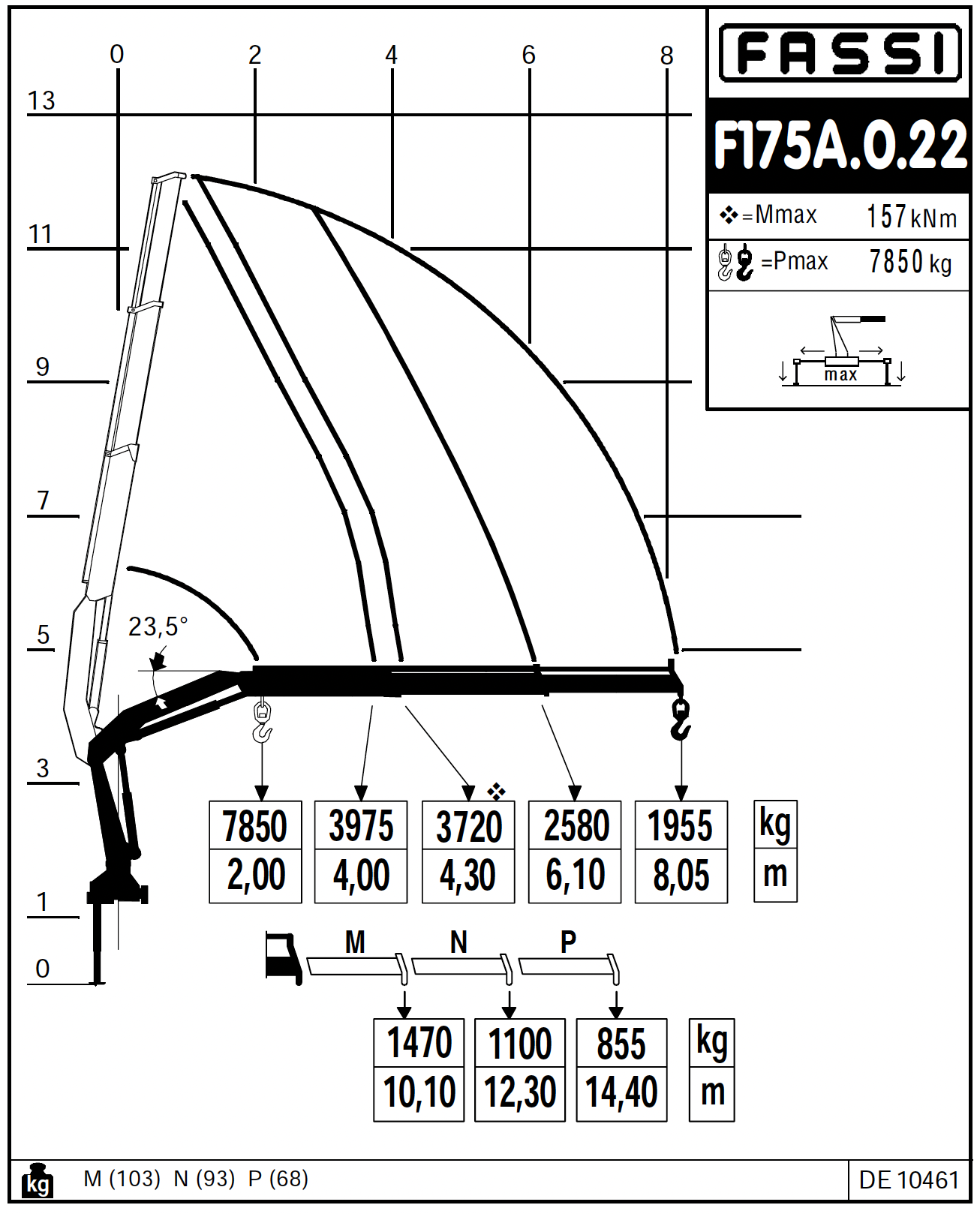

LIFTING CAPACITY:
15,7 tm / 157 kNm
MAX OUTREACH:
up to 8,30 m (horizontal)
up to 11,70 m (vertical)
OVERALL DIMENSIONS:
from: W. 2,46 m, L. 0,87 m, H. 2,25 m
HYDRAULIC EQUIPMENT:
Dual ground controls
Four (4) function distributor bank
Radio remote control unit** (optional)**
CHARACTERISTICS:
active version (.0): without linkage
rotation 400° with rack and pinion
