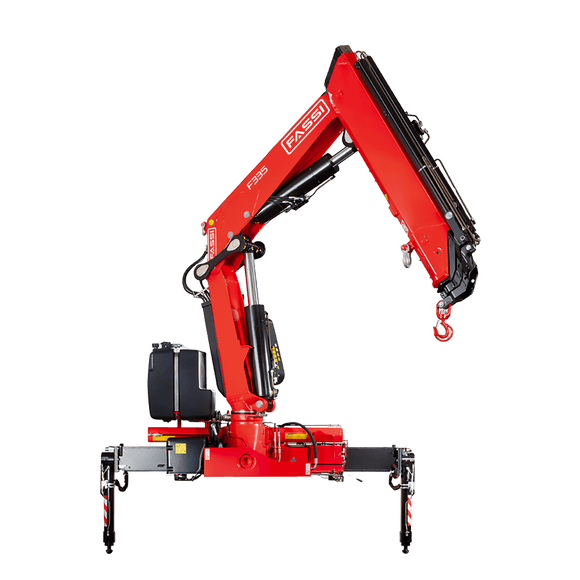

The F335A.2 is a crane from the Fassi range designed to offer an ideal combination of capacity and versatility. With a capacity of up to 31.7 tm and a maximum outreach of 26.70 m with jib, it guarantees high performance for a wide range of applications.
Equipped with the S900 digital hydraulic distributor, it ensures smooth and precise movement. The dynamic version (.2) with linkage further increases operational efficiency, while 400° rotation with rack and pinion guarantees reliability and manoeuvrability.

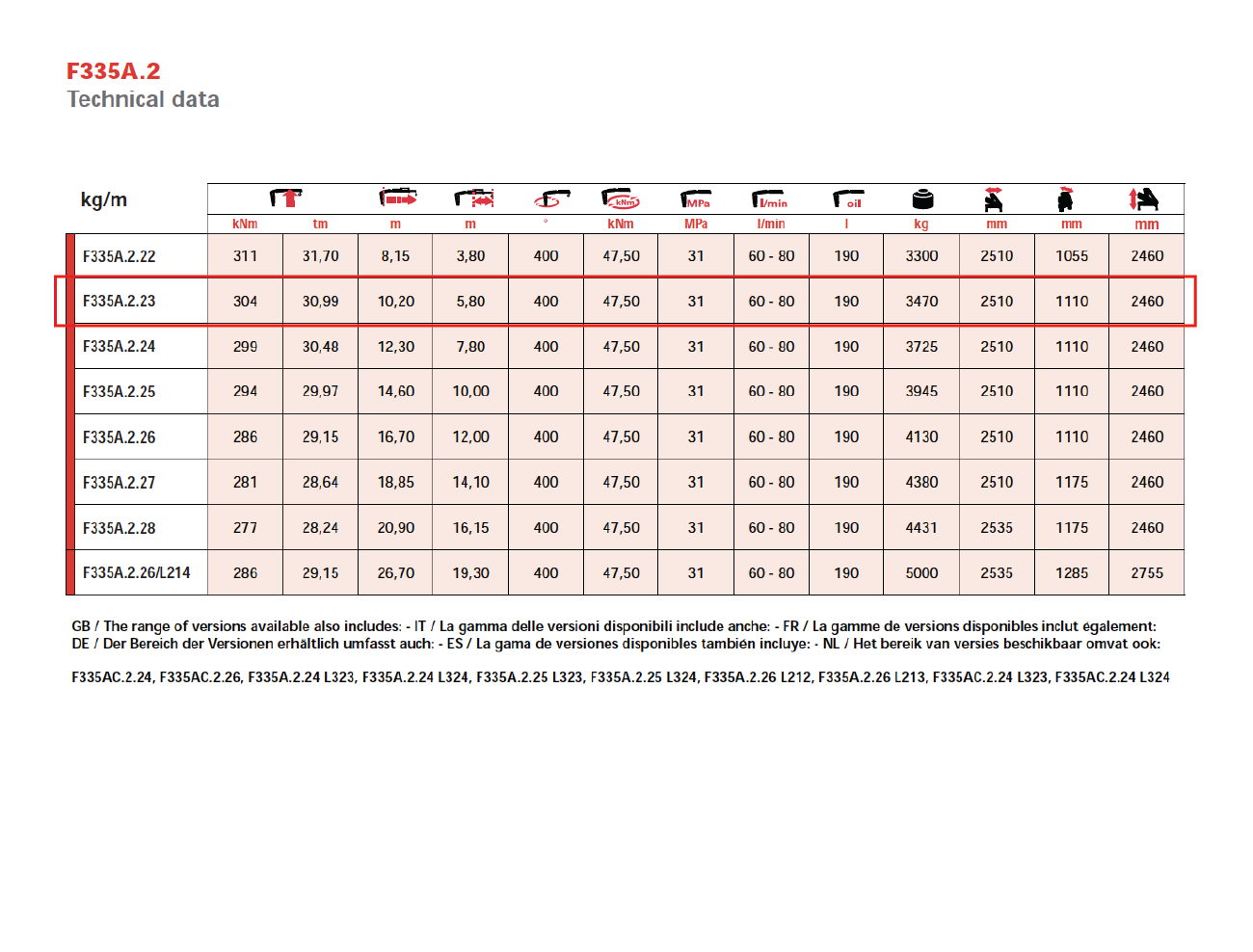

LIFTING CAPACITY:
30,4 tm / 304 kNm

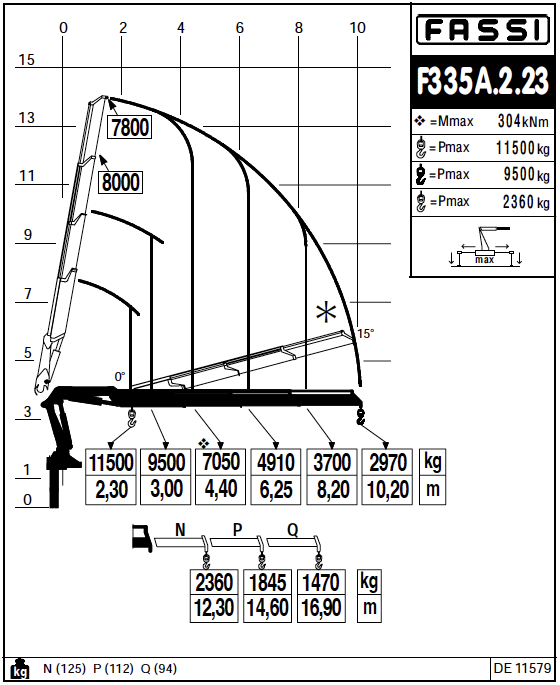

MAX OUTREACH:
up to 10,20 m (horizontal)
up to 13,60 m (vertical)
OVERALL DIMENSIONS:
l 1,10 m , w 2,51 m , h 2,46 m
ELECTRONIC/HYDRAULIC EQUIPMENT:
FX500 control unit
D850 digital distributor bank
RCH/RCS radio remote control unit
ADC automatic dynamic control
flow sharing (optional)
CHARACTERISTICS:
Dynamic version (.2): with linkage
Prolink system with double linkage
rotation 400° with rack and pinion
