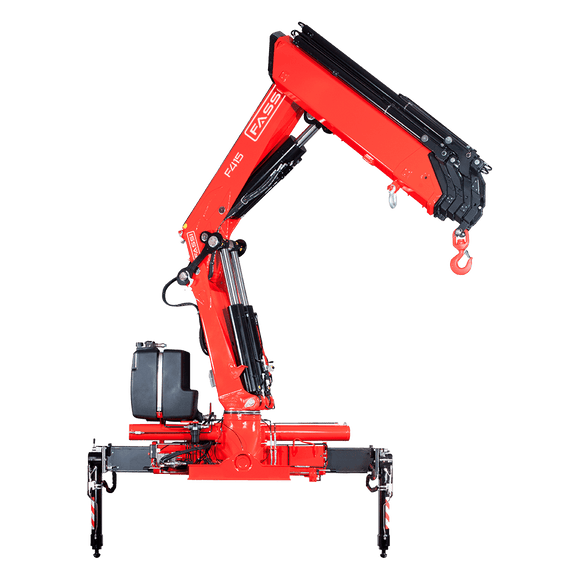

The Fassi F415A.2 stands out in the heavy-duty range for its perfect combination of power, compactness and technology. With a lifting capacity of up to 40.2 tm and a maximum outreach of 28.65 m with jib, this crane has been designed to offer high performance while maintaining operating agility.
Equipped with the S900 digital hydraulic distributor, the F415A.2 guarantees precise and reliable control at every stage of operations. The dynamic configuration (.2) with linkage provides increased versatility, allowing complex manoeuvres to be handled with ease and optimising operational efficiency.
The 430°-rotation system with rack and pinion ensures smooth and safe operation, while the compact design allows optimal integration with the vehicle, rendering this an ideal solution for those requiring a combination of high performance, ease of use and reliability.

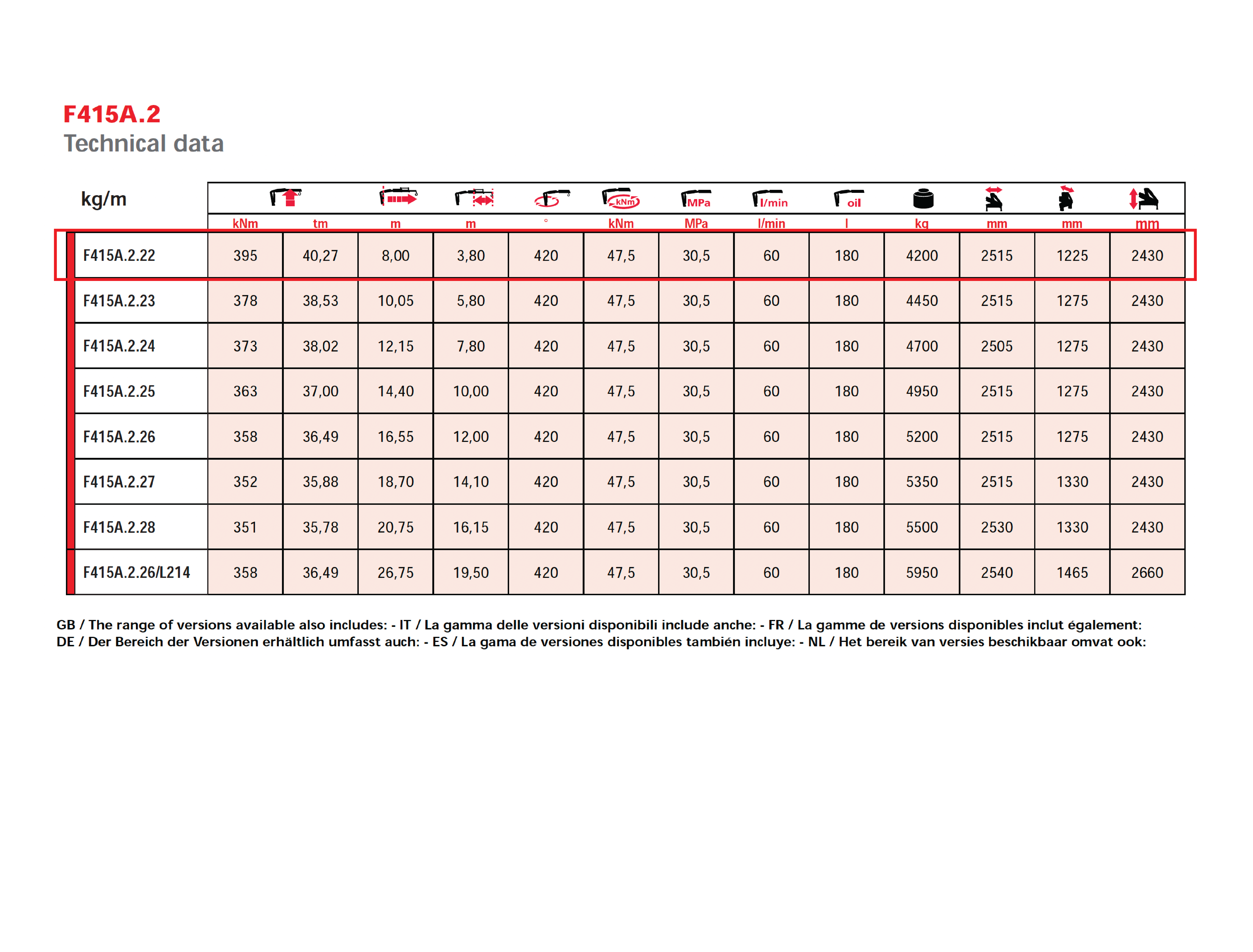

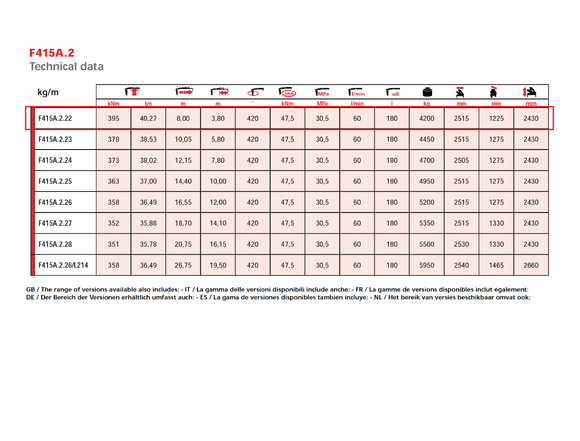

LIFTING CAPACITY:
37,8 tm / 378 kNm

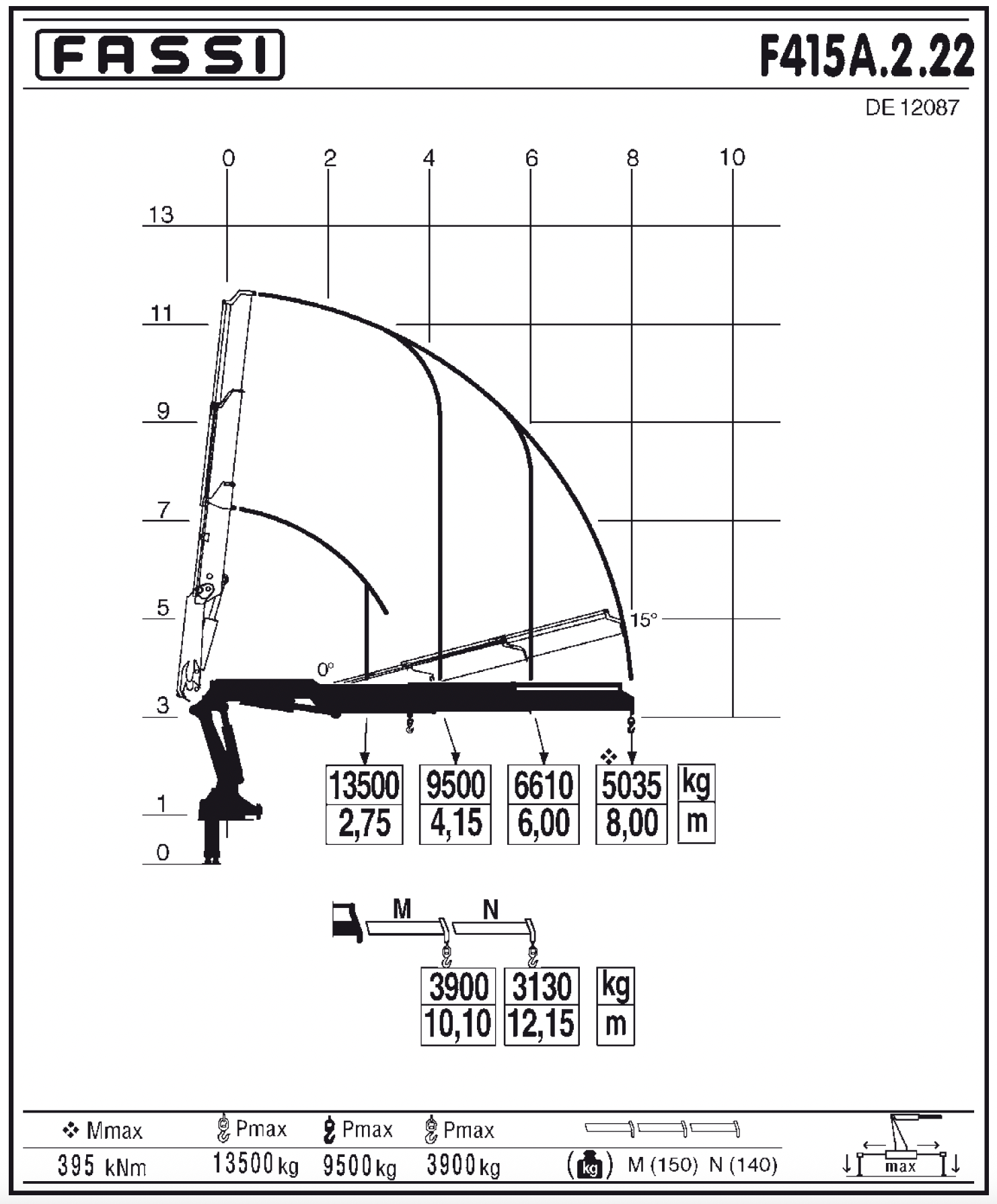

MAX OUTREACH:
up to 10,05 m (horizontal)
up to 13,45 m (vertical)
OVERALL DIMENSIONS:
l 1,27 m , w 2,51 m , h 2,43 m
ELECTRONIC/HYDRAULIC EQUIPMENT:
S900 digital distributor bank (optional)
CHARACTERISTICS:
Dynamic version (.2): with linkage
rotation 430° with rack and pinion
