The F545RA xe-dynamic represents an ideal combination of power, technology and versatility. With a maximum moment of 53 tm and an outreach of up to 28.55 metres with jib, this crane is designed to handle the most demanding applications, ensuring precision, smooth motion and reliability at all times.
The electronics and hydraulics include the FX500 control unit, the D850 digital distributor, the ADC system for dynamic control, and flow sharing, which ensures coordinated and continuous movement even under the most demanding conditions. The RCH/RCS remote controller provides the operator with safe, intuitive and constant control.
From a structural point of view, the ProLink double linkage and XP deviceincrease performance in situations of maximum stress, while continuous slew-ring rotation provides maximum operational flexibility. A sturdy and high-tech crane designed for those seeking uncompromising efficiency.

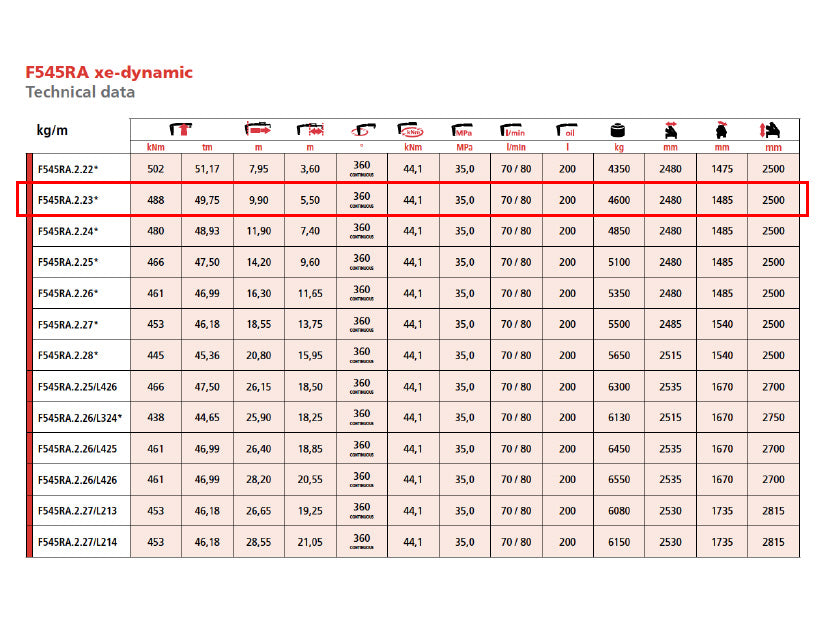

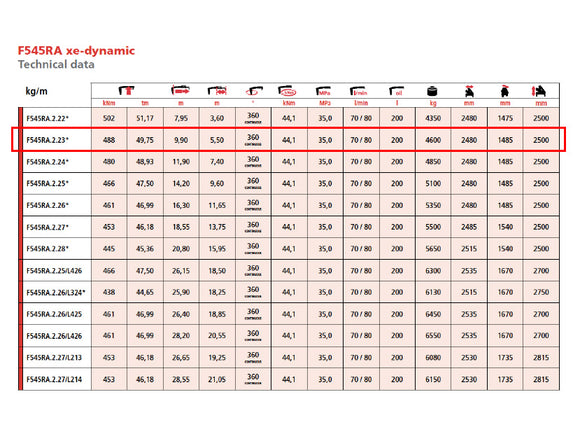

LIFTING CAPACITY:
48,8 tm / 488 kNm

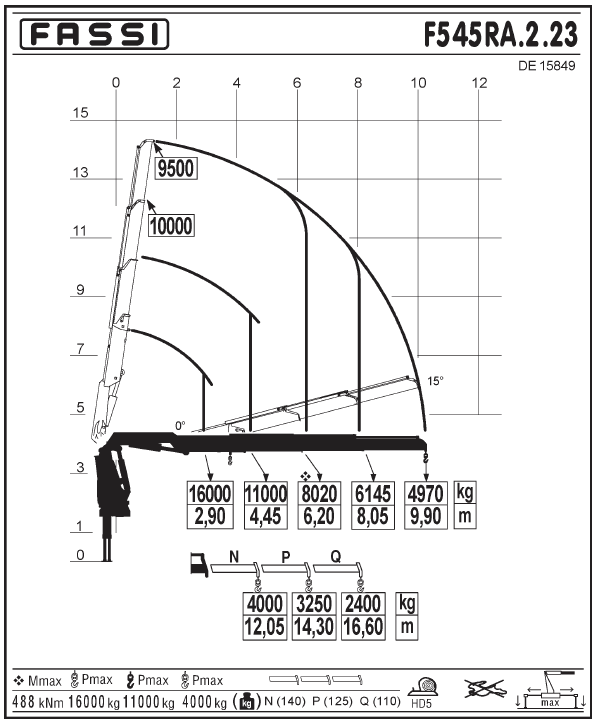

MAX OUTREACH:
up to 9,90 m (horizontal)
up to 13.60 m (vertical)
OVERALL DIMENSIONS:
from: w. 2,48 m, l. 1,45 m, h. 2,50 m
ELECTRONIC/HYDRAULIC EQUIPMENT:
FX500 control unit
D850 digital distributor bank
RCH/RCS radio remote control unit
ADC automatic dynamic control
flow sharing (optional)
CHARACTERISTICS:
Dynamic version (.2): with linkage
XP device
Prolink system with double linkage
continuous rotation on a slew ring
