The F85B.0 is a compact and functional crane designed for ease of use and efficiency, whatever the application. With a lifting capacity of up to 8.56 tm and a maximum outreach of 12.60 m with jib, it delivers solid performance from a light and manoeuvrable structure.
The active version (.0), without linkage, embraces simplicity and operating practicality. The Hydrocontrol HC/D4 modular hydraulic distributor ensures precise movement, while 400° rotation with rack and pinion guarantees versatility and smooth motion.

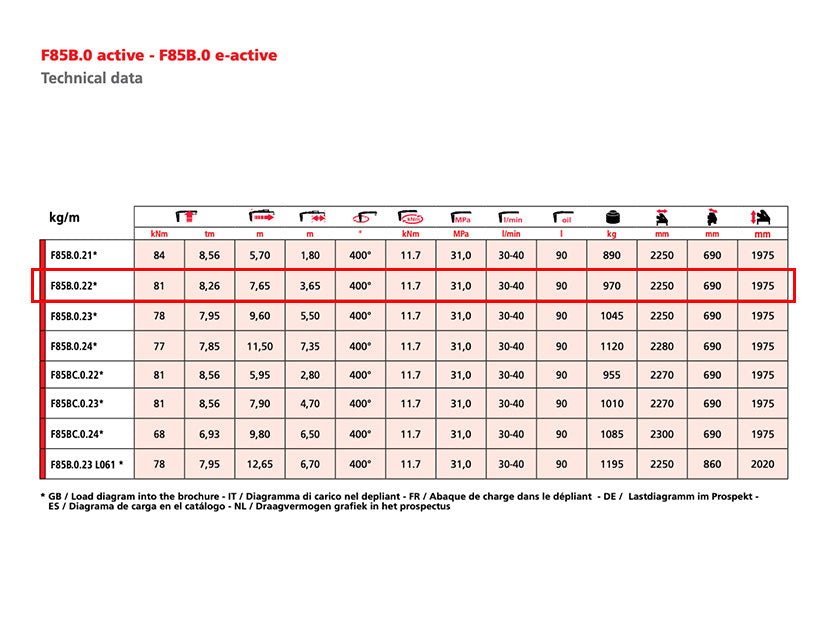

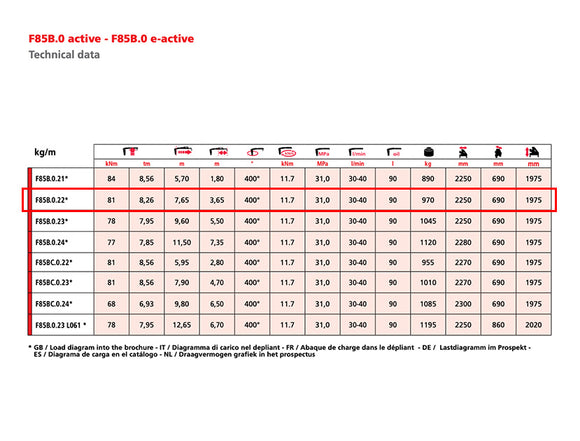

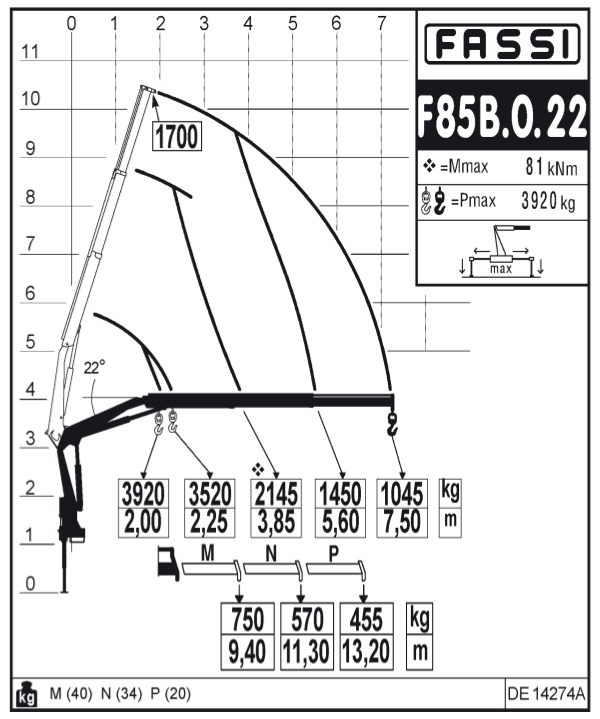

LIFTING CAPACITY:
8,1 tm / 81 kNm
MAX OUTREACH:
up to 8,26 m (horizontal)
up to 11,16 m (vertical)
OVERALL DIMENSIONS:
from: W. 2,25 m, L. 0,70 m, H. 1,95 m
HYDRAULIC EQUIPMENT:
Dual ground controls
Four (4) function distributor bank
Remote control unit (optional)
CHARACTERISTICS:
active version (.0): without linkage
rotation 400° with rack and pinion
