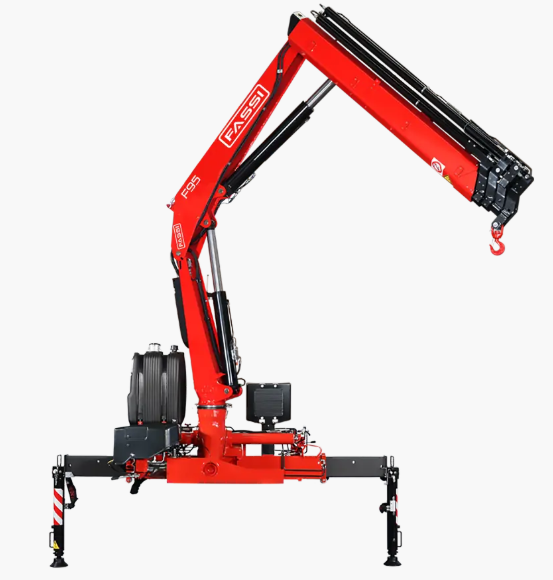

Compact, robust and reliable, the F95B active has been designed to deliver high performance and extremely easy management. With a lifting capacity of 9.07 tm and a maximum outreach of up to 16.55 m with jib, it offers versatility for use even in the most complex situations.
The active version (.0), without linkage, ensures simple and functional configuration, while 410° rotation with rack and pinion guarantees reliability and continuity of use.

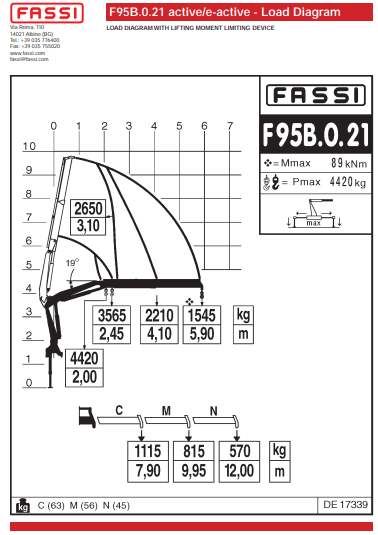

LIFTING CAPACITY:
9 tm / 89 kNm
MAX OUTREACH:
up to 6,10 m (horizontal)
up to 9,07 m (vertical)
OVERALL DIMENSIONS:
from: W. 0,7 m, L. 2,3 m, H. 2,19 m
HYDRAULIC EQUIPMENT:
Dual ground controls
Four (4) function distributor bank
Radio remote control unit** (optional)**
CHARACTERISTICS:
active version (.0): without linkage
rotation 410° with rack and pinion
